SDR 35 Vs Schedule 40: Pros, Cons & Applications
When choosing between SDR 35 and Schedule 40 pipes, consider size and strength differences: SDR 35 has thinner walls, making it lighter and flexible but less pressure-resistant.
Schedule 40’s thicker walls offer higher internal pressure capacity and better crush resistance for load-bearing use.
SDR 35 suits low-pressure, gravity-fed applications like drainage, while Schedule 40 is ideal for pressurized or heavy-load areas.
Understanding these contrasts helps optimize your pipe selection, with more detailed factors to explore ahead.
Key Takeaways
- SDR 35 pipes have thinner walls, making them lighter and more flexible than thicker, rigid Schedule 40 pipes.
- Schedule 40 pipes support higher internal pressures and heavy external loads, unlike SDR 35 which suits low-pressure applications.
- SDR 35 is ideal for sewer lines and drainage, while Schedule 40 is preferred for pressurized plumbing and load-bearing scenarios.
- SDR 35 pipes cost 20–30% less and are easier to handle compared to the more durable but heavier Schedule 40 pipes.
- Choose Schedule 40 for driveways and heavy traffic areas, and SDR 35 for non-traffic zones and flexible underground installations.
SDR 35 or Schedule 40: Key Differences at a Glance
| Feature | SDR 35 | Schedule 40 |
|---|---|---|
| Wall Thickness | Thinner | Thicker |
| Weight | Lighter | Heavier |
| Flexibility | Higher | Lower |
| Pressure Capacity | Lower; suited to low-pressure systems | Higher; suited to pressurized systems |
| Crush Resistance | Lower | Higher |
| Durability | Good for non-load-critical applications | Excellent for heavy-load and impact-prone areas |
| Typical Applications | Sewer lines, storm drainage, underground runs | Pressurized plumbing, driveways, heavy-load areas |
| Underground Performance | Handles ground movement well | Better where external loads are significant |
| Installation | Easier to handle and transport | More demanding due to greater weight |
| Cost | Typically 20–30% lower | Higher |
| Load-Bearing Areas | Not ideal | Better suited |
| Traffic Areas | Best for non-traffic zones | Suitable under driveways and heavy traffic |
| Fittings | Requires SDR 35-specific fittings | Requires Schedule 40-specific fittings |
| 4-Inch Outside Diameter | About 4.215 inches | About 4.500 inches |
| Interchangeability | Cannot directly connect to Schedule 40 without adapters | Cannot directly connect to SDR 35 without adapters |
| Main Advantage | Flexible, lightweight, and cost-effective | Strong, durable, and pressure-resistant |
| Main Drawback | Lower pressure and load capacity | Higher cost and heavier installation |
Size and Strength Differences in SDR 35 Vs Schedule 40 Pipes
Although both SDR 35 and Schedule 40 pipes serve common piping needs, their size and strength characteristics differ markedly, impacting their suitability for specific applications.

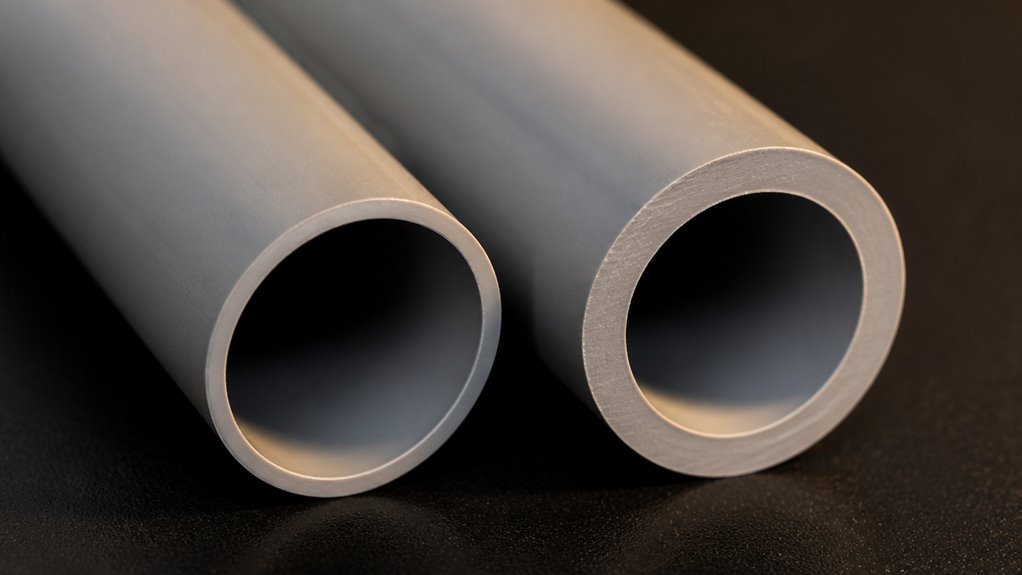

You’ll notice SDR 35 pipes have thinner walls, defined by a Standard Dimension Ratio of 35. This makes them lighter and more flexible.
In contrast, Schedule 40 pipes feature thicker walls, providing enhanced rigidity and structural strength. For example, a 4-inch SDR 35 pipe has an outside diameter around 4.215 inches, whereas a Schedule 40 counterpart measures about 4.500 inches.
This size difference means you can’t interchange fittings without adapters. While SDR 35’s flexibility aids underground installation and accommodates ground movement, Schedule 40’s increased wall thickness offers superior crush resistance and durability in load-bearing or high-impact environments.
Selecting the right pipe involves balancing dimensional stability and strength requirements to match your specific application needs.
Pressure and Load Capacity: SDR 35 Vs Schedule 40 Pipes
Understanding the size and strength differences between SDR 35 and Schedule 40 pipes sets the stage for evaluating their pressure and load capacities.
SDR 35’s thinner wall limits its pressure rating, making it suitable primarily for low-pressure, non-pressurized drainage systems.
SDR 35’s thinner walls restrict pressure capacity, ideal for low-pressure, non-pressurized drainage applications.
In contrast, Schedule 40’s thicker wall enhances its ability to withstand higher internal pressures, supporting pressurized plumbing applications effectively.
When it comes to load capacity, Schedule 40’s robust construction provides superior crush resistance and structural integrity under heavy external loads, such as traffic or driveway stress.
SDR 35, while more flexible and lighter, offers less durability under significant load conditions.
You’ll find Schedule 40 pipes more reliable for high-pressure and load-bearing scenarios, whereas SDR 35 fits better in low-pressure, non-load-critical environments.
Proper system component compatibility, much like ensuring correct replacement of fire sprinkler heads, is essential to maintain overall system integrity and safety.
Best Applications for SDR 35 and Schedule 40 Pipes
Selecting the right pipe for your project hinges on matching the pipe’s characteristics to the specific demands of the application.
You’ll find SDR 35 best suited for low-pressure, non-pressurized systems like sewer lines, storm drainage, and general underground runs.
Its flexibility and cost-efficiency matter most in these scenarios. Thinner walls allow for easier installation in expansive or shifting soils but limit strength under heavy loads.
Conversely, Schedule 40’s thicker walls provide superior structural strength and pressure resistance. This makes it ideal for pressurized plumbing, load-bearing areas, and sections beneath driveways or near structures.
You should opt for Schedule 40 when impact resistance and long-term durability are critical.
In mixed projects, combining SDR 35 for general runs with Schedule 40 in stressed zones optimizes performance and cost-effectiveness.
Proper deburring and chamfering of pipe ends ensure secure, leak-proof joints and extend the longevity of both SDR 35 and Schedule 40 installations.
Cost and Installation Factors for Choosing SDR 35 or Schedule 40 Pipes
When evaluating cost and installation factors, you’ll find SDR 35 generally offers a more budget-friendly option. Its thinner walls and lighter weight reduce both material expenses and handling difficulty.
SDR 35 typically costs 20–30% less and is easier to transport and install, especially in underground settings. Schedule 40’s thicker walls increase material cost and handling complexity but provide greater durability where load-bearing strength is critical.
| Factor | Impact on You |
|---|---|
| Cost | Save up to 30% with SDR 35 |
| Installation Effort | SDR 35 is lighter and easier |
| Durability Needs | Schedule 40 suits high-stress zones |
This concise comparison clarifies cost-efficiency and installation ease versus structural demands.
When Should You Choose SDR 35 or Schedule 40 Pipes?
Because pipe performance depends heavily on the application environment, you’ll want to match SDR 35 or Schedule 40 pipe to specific project demands.
SDR 35 suits low-pressure, underground drainage where flexibility and cost savings matter. Schedule 40 excels in high-pressure, load-bearing, or impact-prone areas due to its thicker wall and greater strength.
Consider these factors when choosing:
- Pressure Requirements: Use Schedule 40 for pressurized systems; SDR 35 for gravity flow or low pressure.
- Load and Impact: Select Schedule 40 under driveways or heavy traffic. SDR 35 is suitable for non-traffic zones.
- Flexibility Needs: Opt for SDR 35 where ground movement or easier handling is critical.
- Budget Constraints: SDR 35 offers cost efficiency for large, non-critical runs. Schedule 40 justifies higher cost for durability.
Matching pipe type to these criteria guarantees peak performance and longevity. Additionally, understanding the load capacity and structural stability of materials ensures safe and effective pipe selection for various conditions.
Frequently Asked Questions
Can SDR 35 and Schedule 40 Pipes Be Connected Directly Without Adapters?
You can’t connect SDR 35 and Schedule 40 pipes directly without adapters because their outside diameters differ. SDR 35 is thinner and smaller.
Attempting a direct connection risks leaks or joint failure due to the mismatch in size and wall thickness.
To guarantee a secure, reliable joint, use properly sized adapters or coupling fittings designed to bridge the dimensional differences between these pipe types safely.
How Does Pipe Flexibility Affect Long-Term Underground Performance?
You’ll find pipe flexibility essential for underground performance because it helps the pipe absorb ground shifts and minor settling without cracking.
Flexible pipes like SDR 35 accommodate soil movement better, reducing stress and potential leaks.
However, excessive flexibility may compromise structural strength under heavy loads.
Are There Color Differences Between SDR 35 and Schedule 40 Pipes?
No, you won’t find a strict color standard that differentiates SDR 35 from Schedule 40 pipes universally.
Manufacturers often use different colors based on application, like green for sewer or white for potable water, regardless of SDR rating or schedule.
So, you should verify pipe specifications by labeling and markings rather than color alone.
Relying on color for identification can lead to errors in installation or project compliance.
What Are the Typical Outside Diameters for 4-Inch SDR 35 and Schedule 40 Pipes?
For 4-inch pipes, the typical outside diameter for SDR 35 is about 4.215 inches.
Schedule 40 measures larger at around 4.500 inches.
This difference means you can’t directly connect SDR 35 and Schedule 40 pipes without adapters.
Keep these precise measurements in mind when planning your project to guarantee proper fitting.
Especially since the wall thickness and strength vary markedly between these pipe types.
Does Local Building Code Favor One Pipe Type Over the Other?
Local building codes can be as varied as a patchwork quilt, so you’ll want to check your jurisdiction’s specific requirements.
Generally, codes favor Schedule 40 for areas with higher load demands or pressure ratings because of its strength.
For non-pressurized, underground drainage, SDR 35 is often accepted and sometimes preferred due to cost and flexibility.
Always review local regulations carefully, as some codes mandate Schedule 40 near structures or under driveways for durability.
SDR 35 or Schedule 40? Find the Best Option
When choosing between SDR 35 and Schedule 40 pipes, consider size and strength, pressure and load capacity, application needs, and cost efficiency.
You’ll prioritize SDR 35 for lighter loads, flexibility, and cost savings. Schedule 40 suits higher pressures, durability, and heavy-duty tasks.
Weigh installation ease against long-term performance, balancing technical demands with budget constraints.
Ultimately, select the pipe that aligns precisely with your project’s requirements and operational goals.
